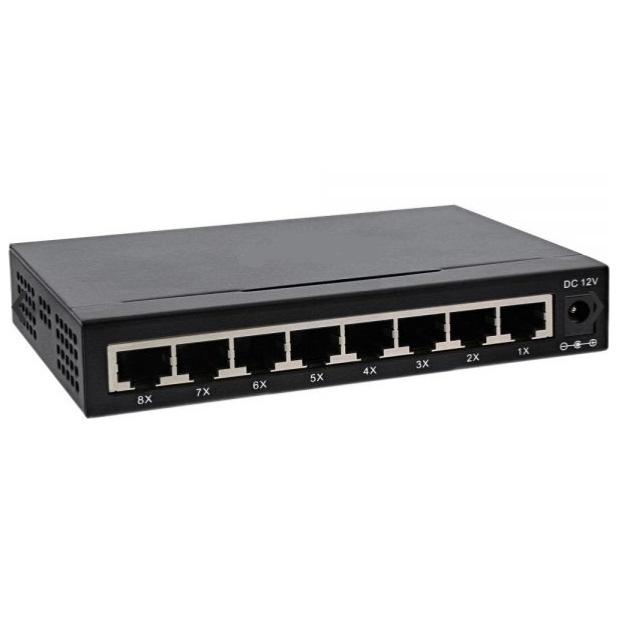

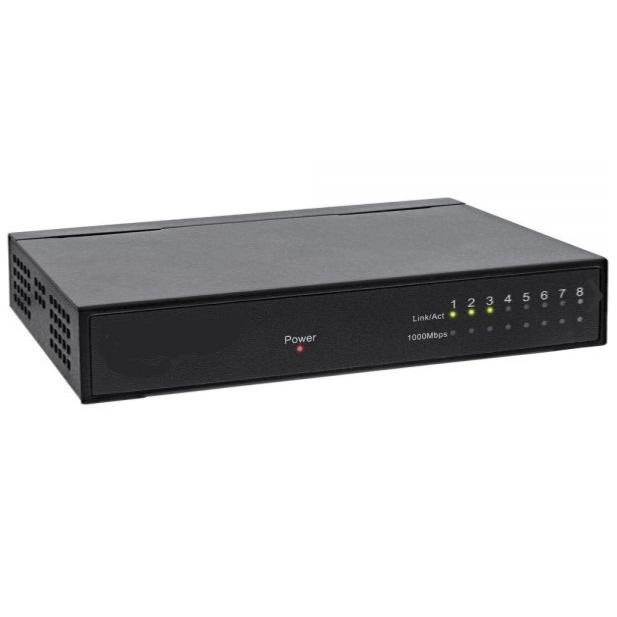

Switch Ethernet 8 ports Gigabit

(Code: KC-IN-32308M)
En Stock
Specification:
Standards and protocols: IEEE802.3 10Base-T, IEEE802.3u 100Base-TX CSMA/CD, TCP/IP
Grundfunktionen:

    5x 10/100 Mb/s Auto-Negotiation ports
    MAC Address Auto-Learning and Auto-updating
    IEEE802.3x flow control for Full-Duplex mode and 802.3z asymmetric flow control


Backbone bandwidth: 1 Gbps
MAC Address Table: 1K
Forwarding rate

    10Base-T: 14880pps/port
    100Base-TX: 148800pps/port


Transmission method: Store-and-forward
Ports: 5x 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
Cables to be used

    10Base-T: UTP cable Cat. 3, 4, 5 (max. 100 meters), EIA/TIA-568 100ohm STP (max. 100 meters)
    100Base-TX: UTP Cable Cat. 5, 5e or higher (max. 100 meters)
    EIA/TIA-568 100ohm STP (max. 100 meters)




Environmental conditions:

    Operating temperature: 0°C ~ 40°C (32°F ~ 104°F)
    Storage temperature: -40°C ~ 70°C (-40°F ~ 158°F)
    Operating humidity: 10% ~ 90% non-condensing
    Storage humidity: 5% ~ 90% non-condensing


LED indicators: Power, 10/100M
Dimensions: 9.2x6.7x2.9cm (WxDxH)
Weight: 161g
AC adaptor: 12V, 0,5A
